MAIN EQUIPMENT
CHIP PREPARATION, DRYING & REFINING LINE

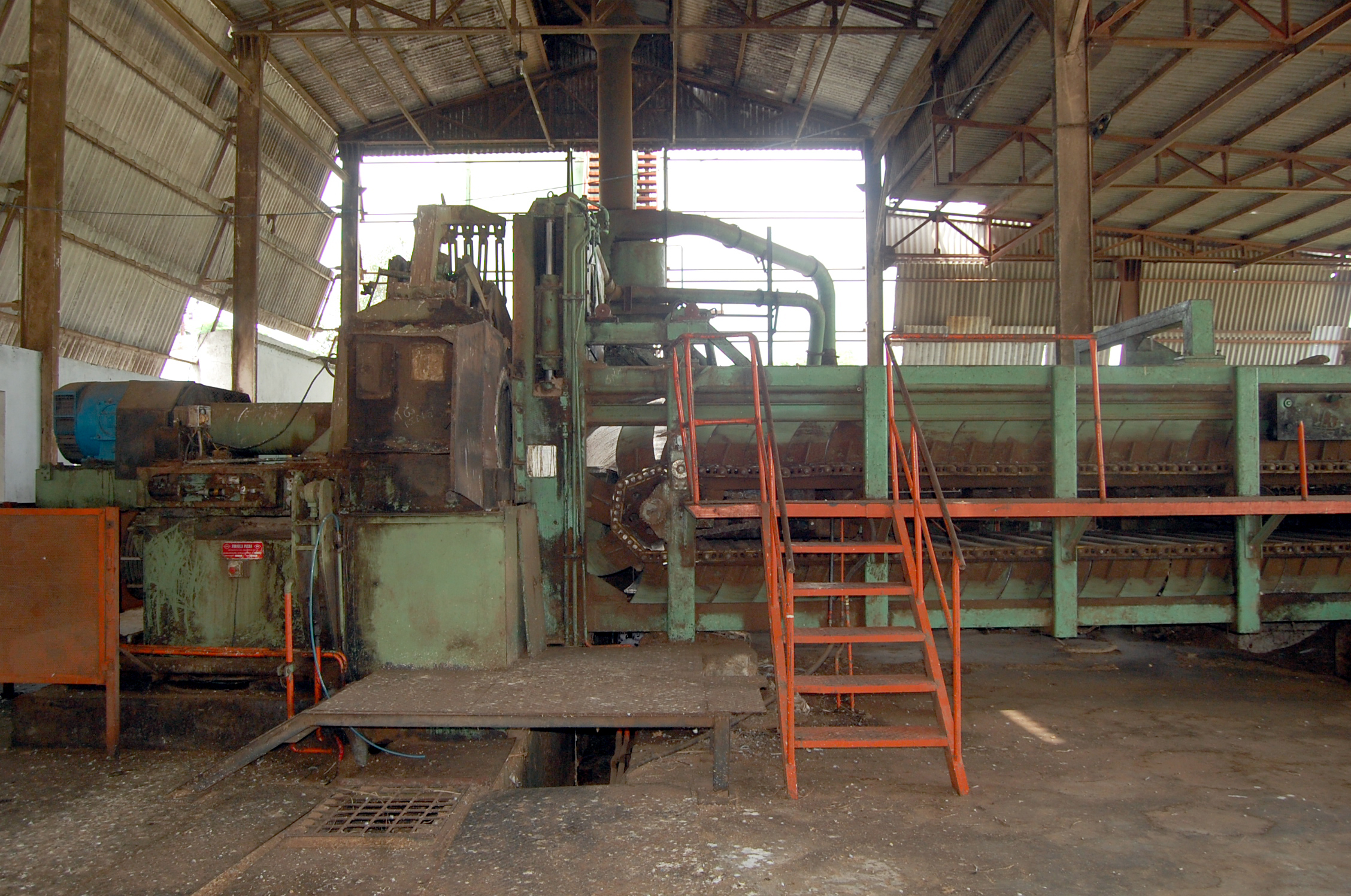

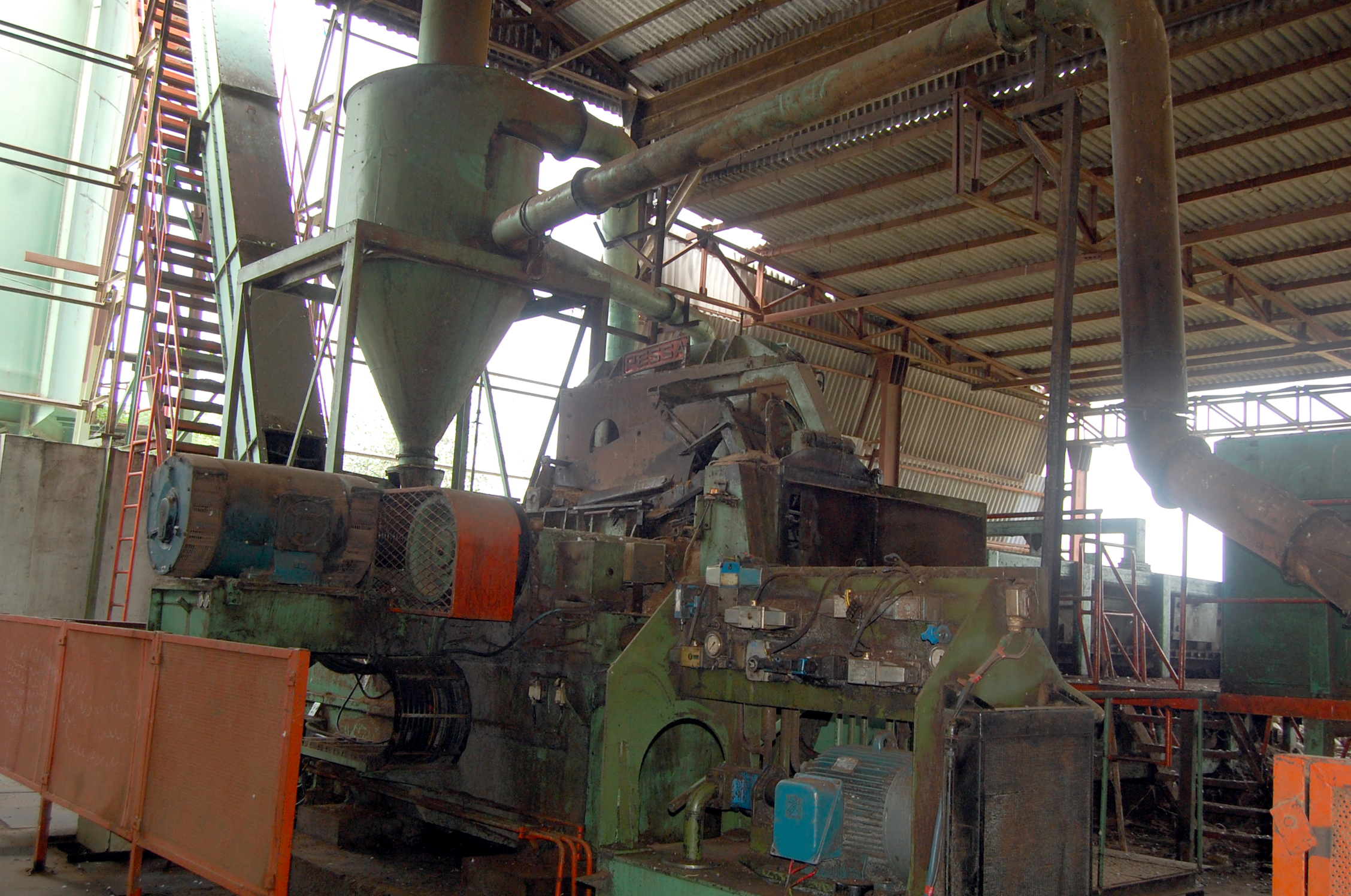

B.11 Universal Flakers 2nos
Capacity
: 8.0 tons/hr atro
Make
: Pessa,Italy
Duty
: To cut round wood logs into flakes

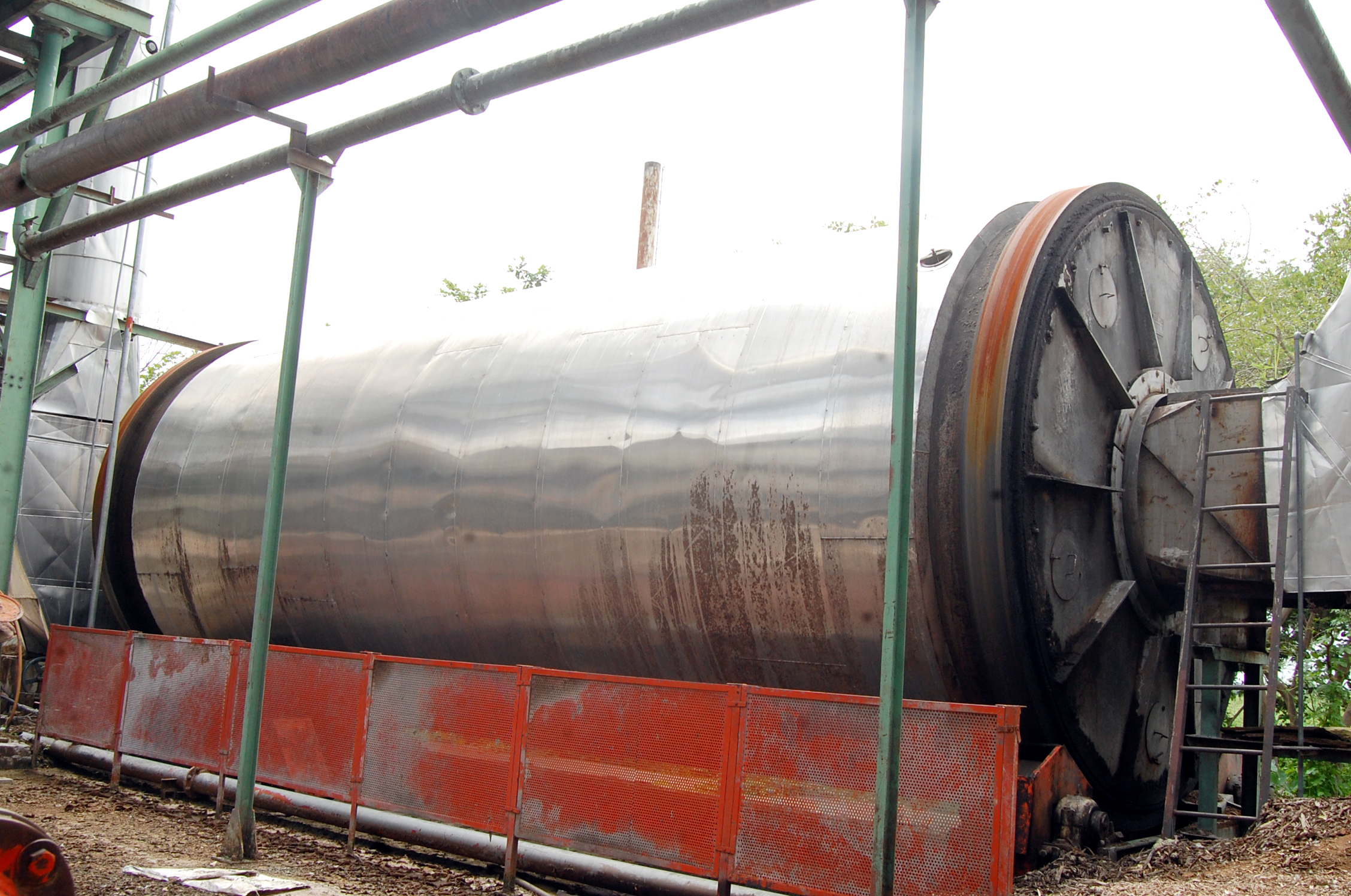

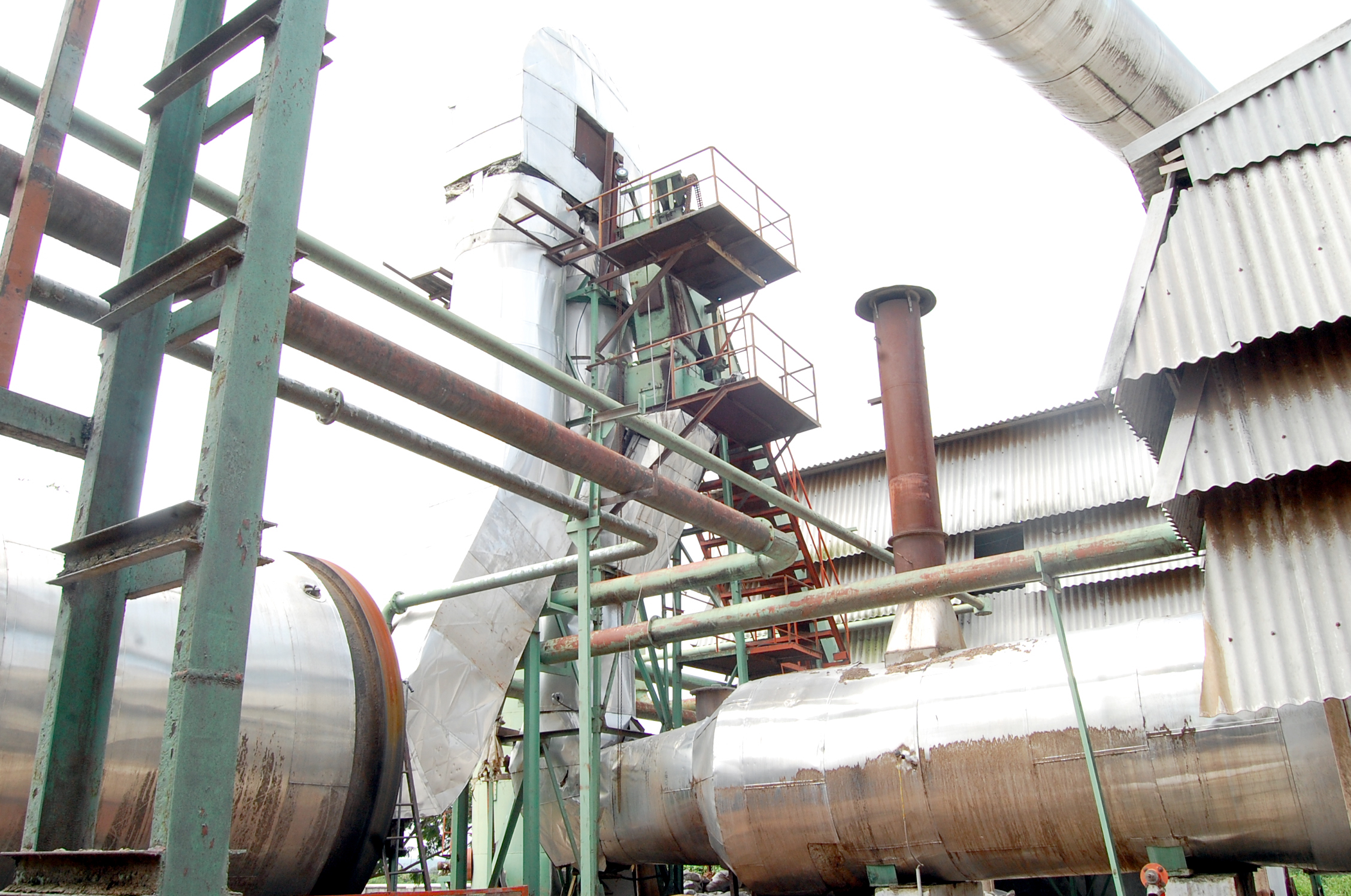

B.12 Rotary Dryer
Capacity
: 10.00 tons od chips per hr
Make
: Bison,Germany
Heating media
: Fine wood dust ( sander dust )

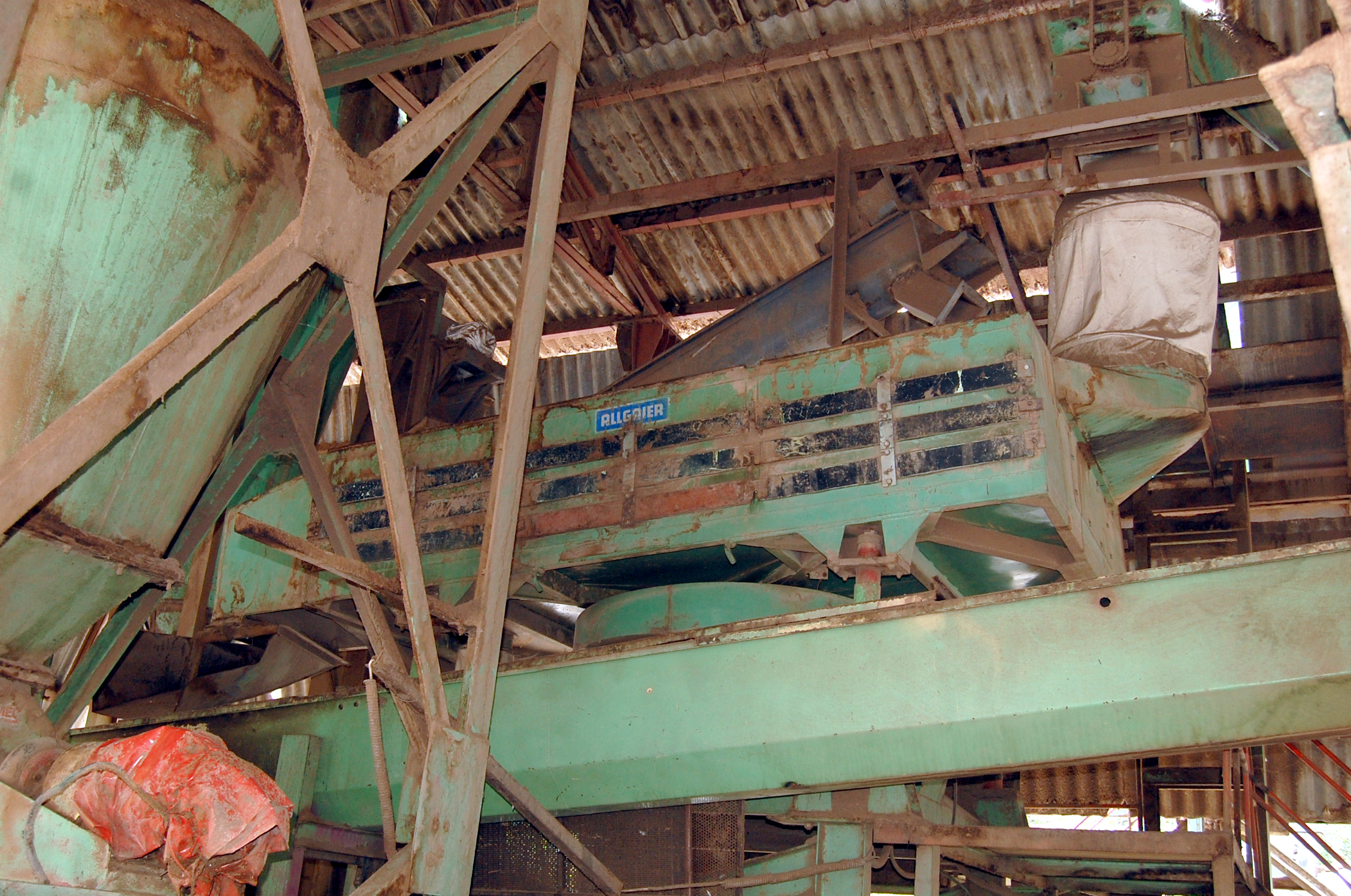

B.13 Algier Screen
Type
: Rotary
No of fractions
: 4nos

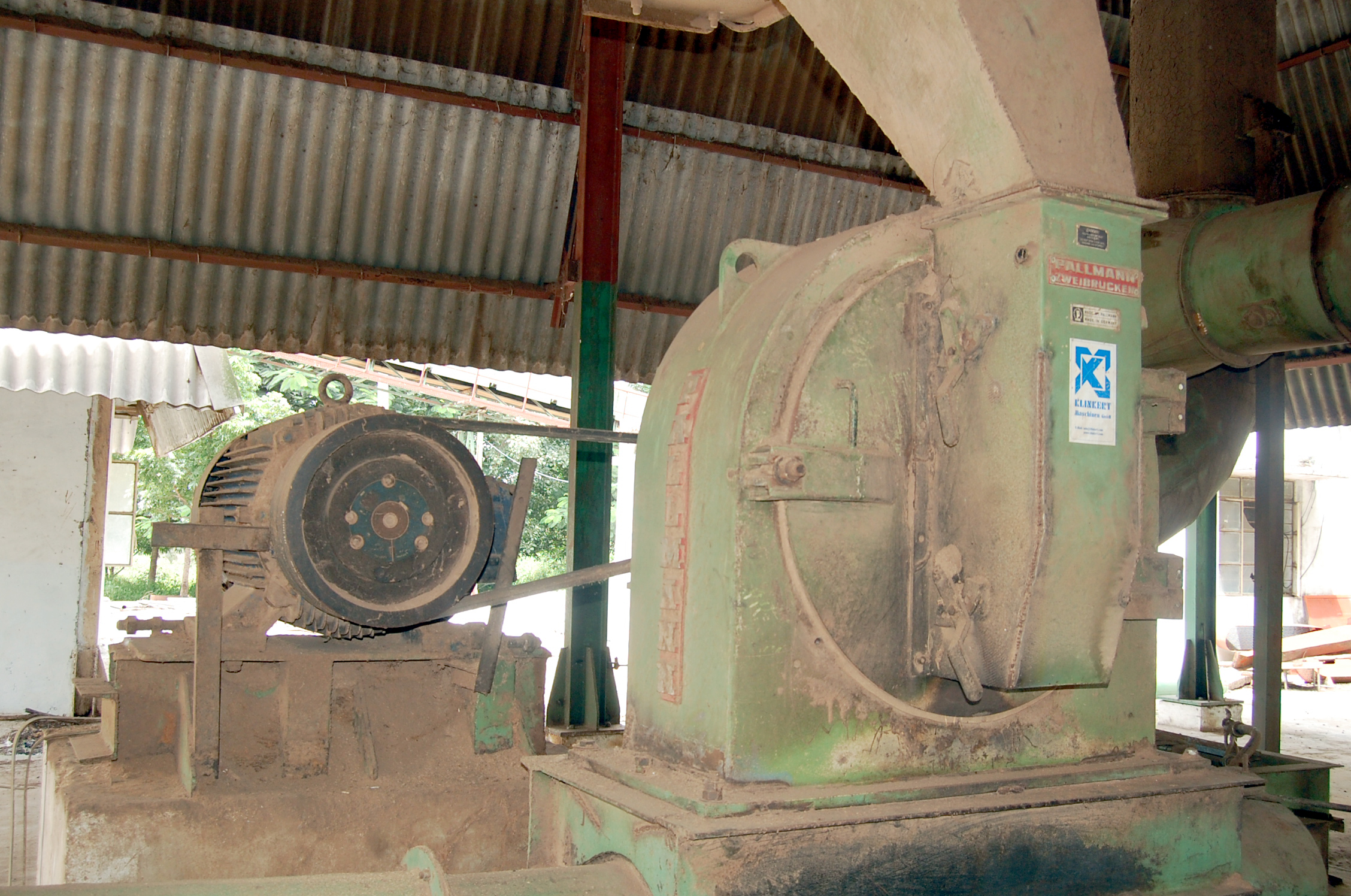

B.14 PSK Mill
Make
: Palmann,Germany
Capacity
: 2.0 tons/hr
Duty
: To disintegrate oversize particles coming from screen

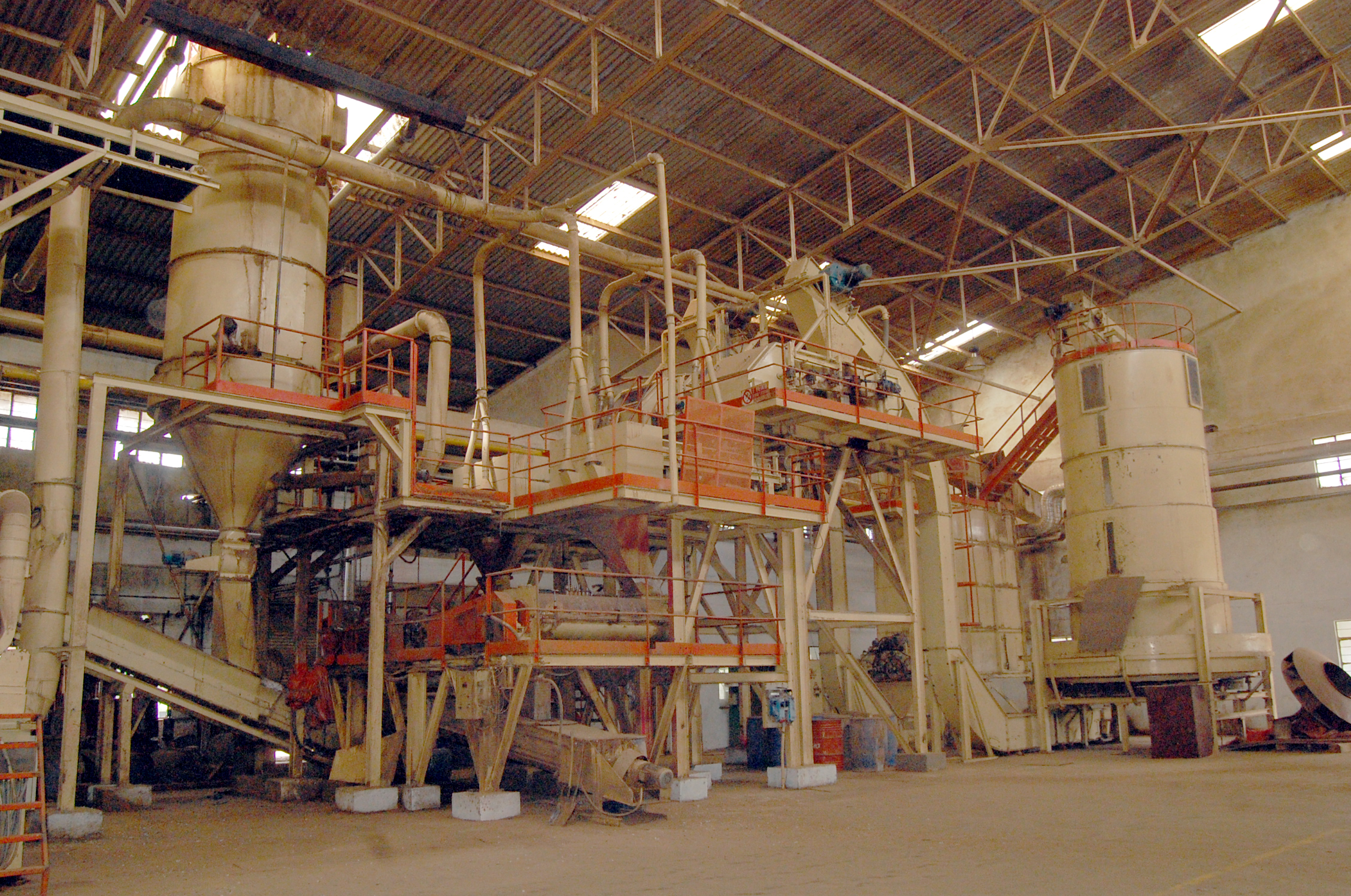

GLUING AND FORMINF LINE
B.21 Glue Blenders
Quantity
: 2 nos
Make
: PAL/IMAL, Italy/hr
Capacity
: Capacity 10 tons/hr

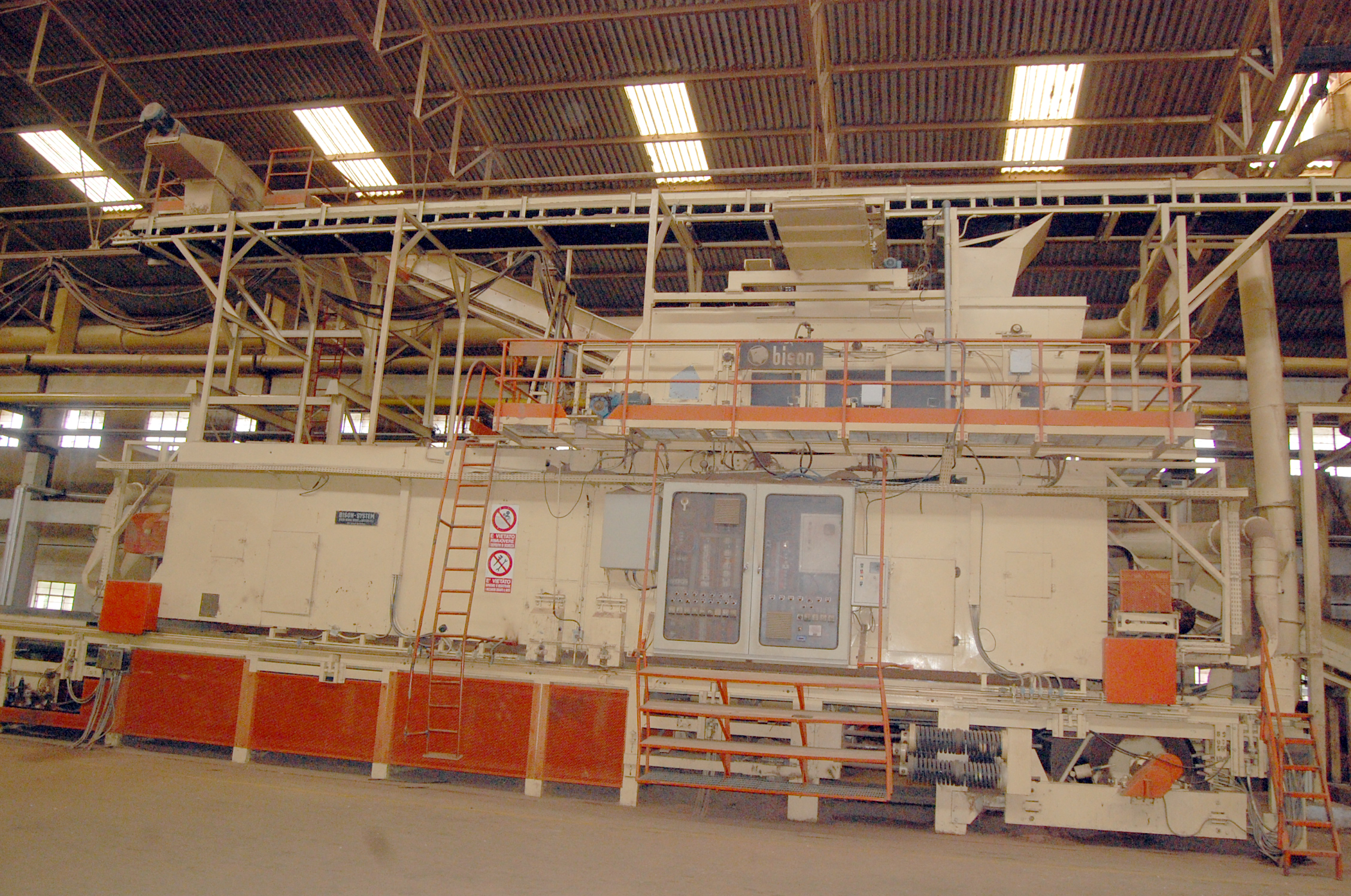

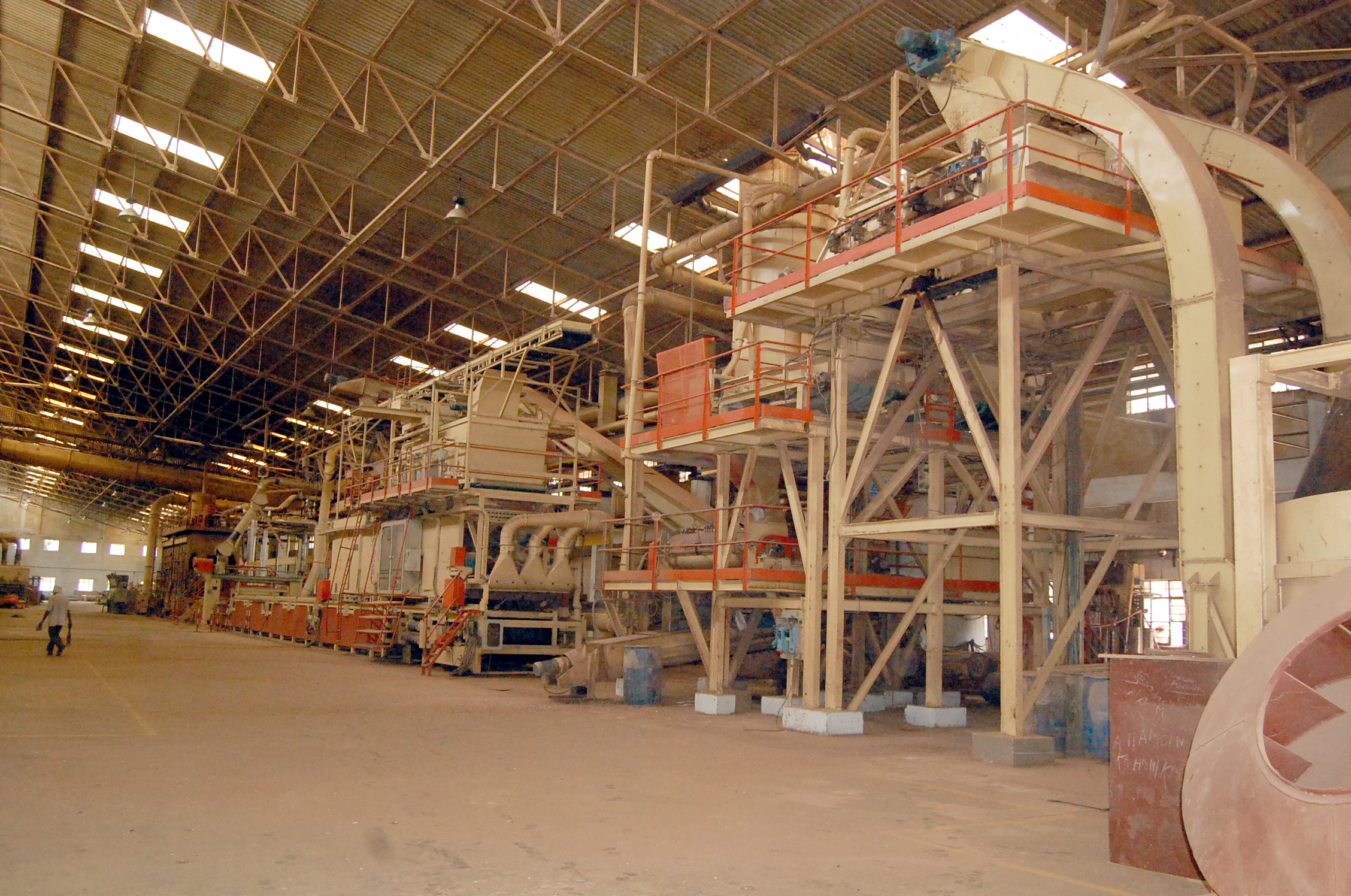

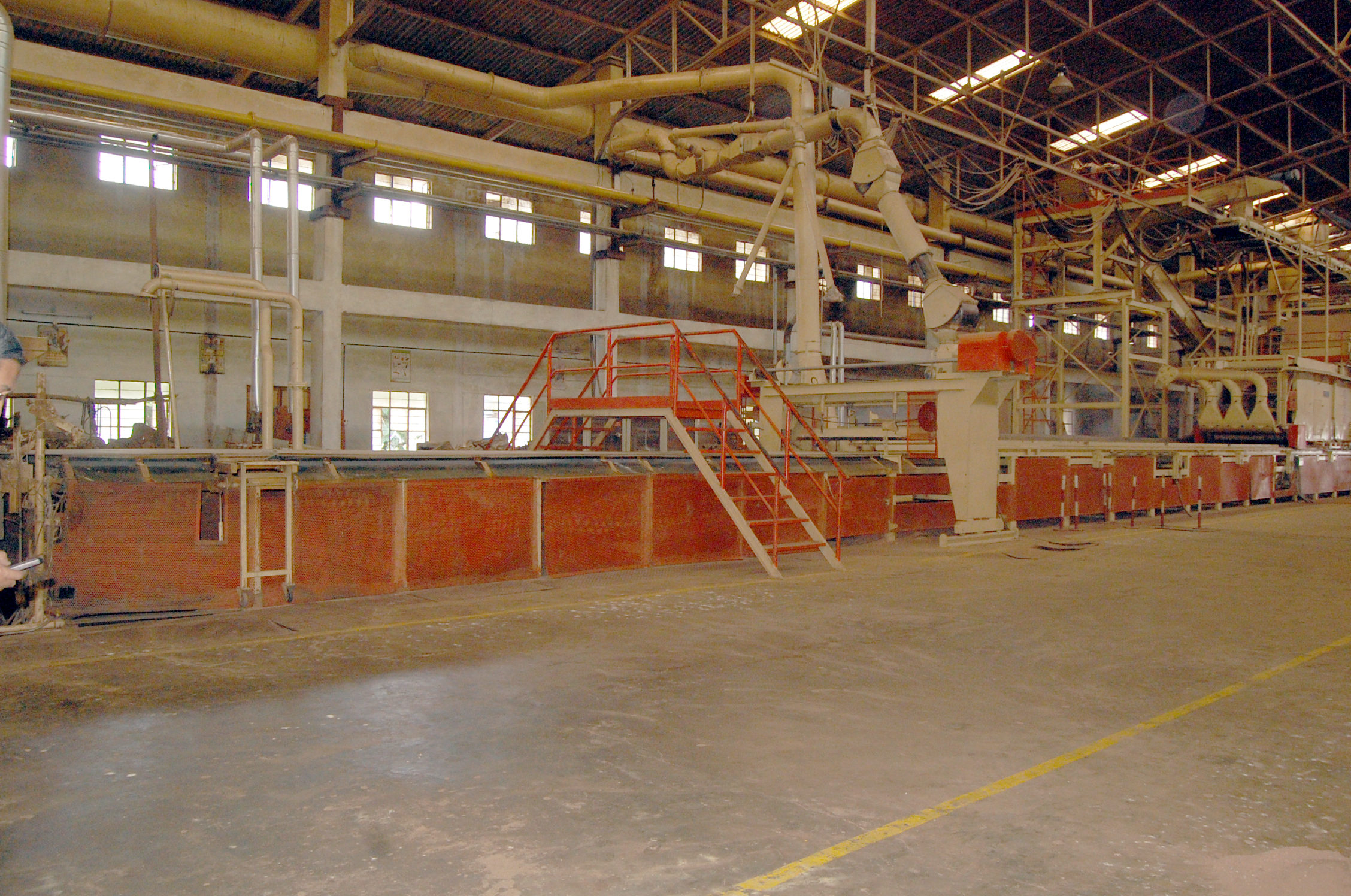

B.22 Forming Line
Make
: Bison,Germany
Capacity
: 150 cbm per day
Type
: Movable former with continous steel belt
Size
: 110 mtr long and 2 mtr wide

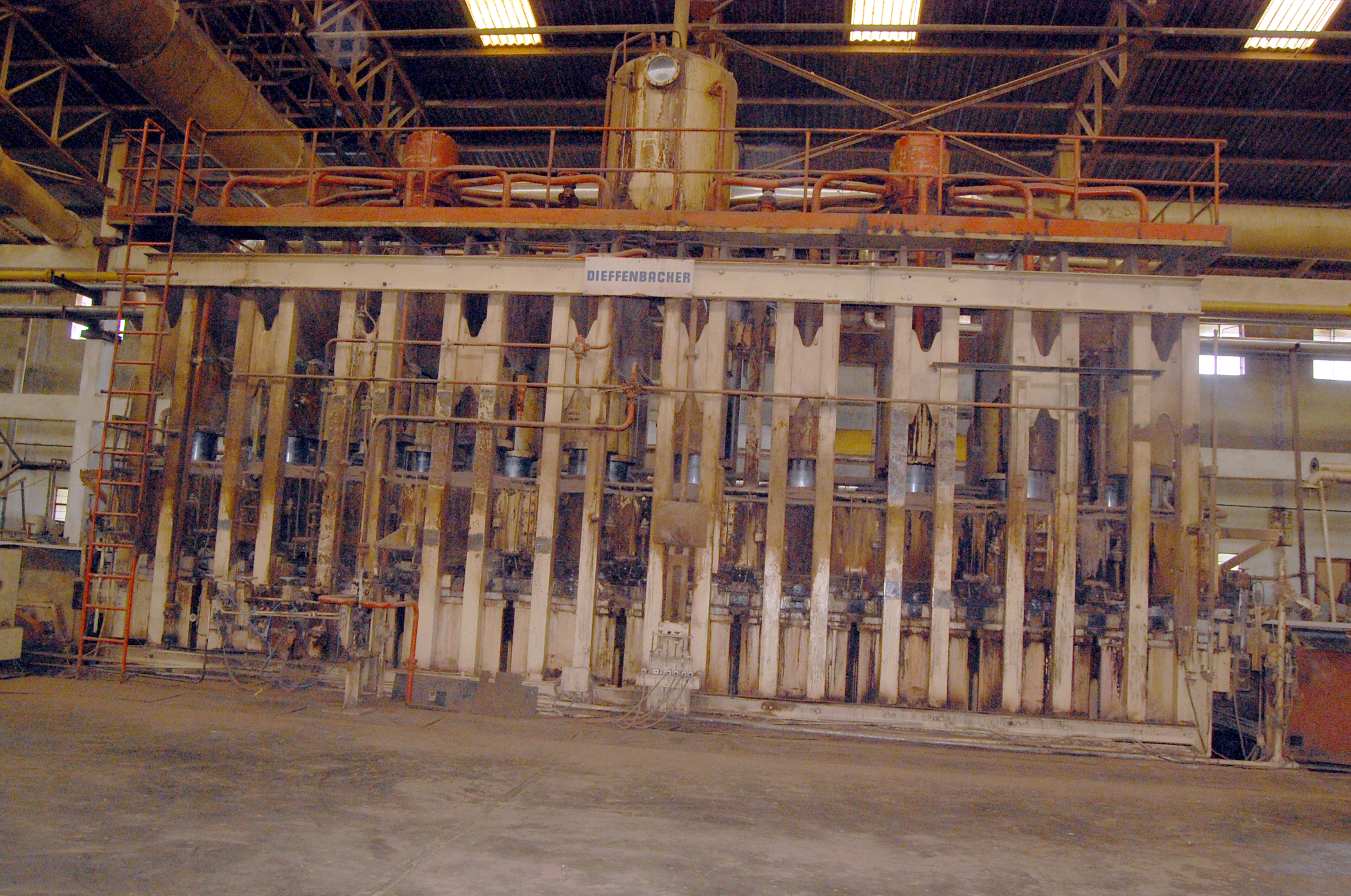

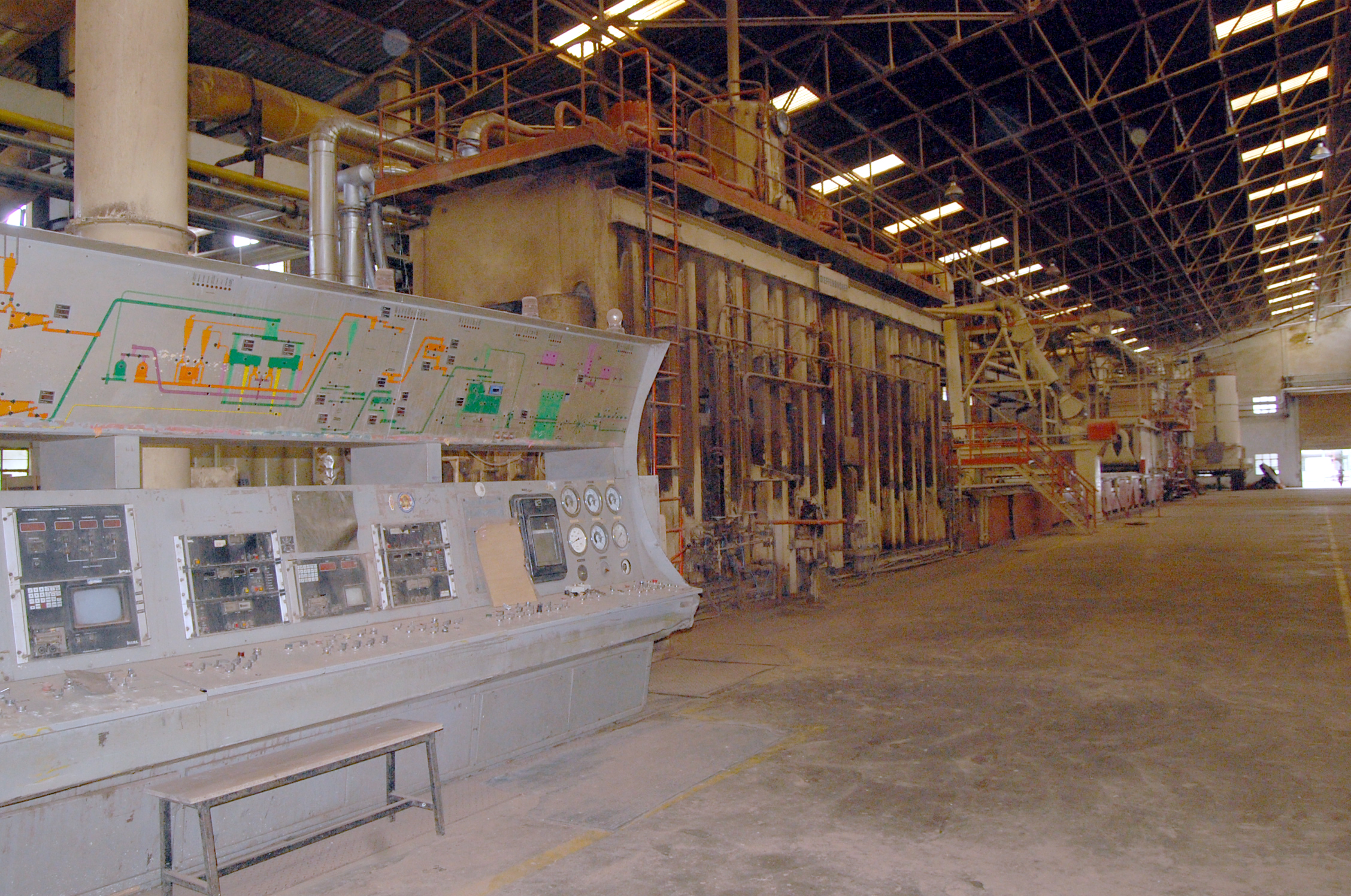

B.23 MAIN PARTICLE BOARD HYDRAULIC PRESS
Make
: Dieffenbacher,Germany
Capacity
: 150 cbm per day
Type
: Single opening
Board Size
: 36 ft long & 6 ft wide
Heating media
: Thermic fluid
B.24 Star cooler
Duty
: To cool hot pressed boards
No of Segments
: 10 nos

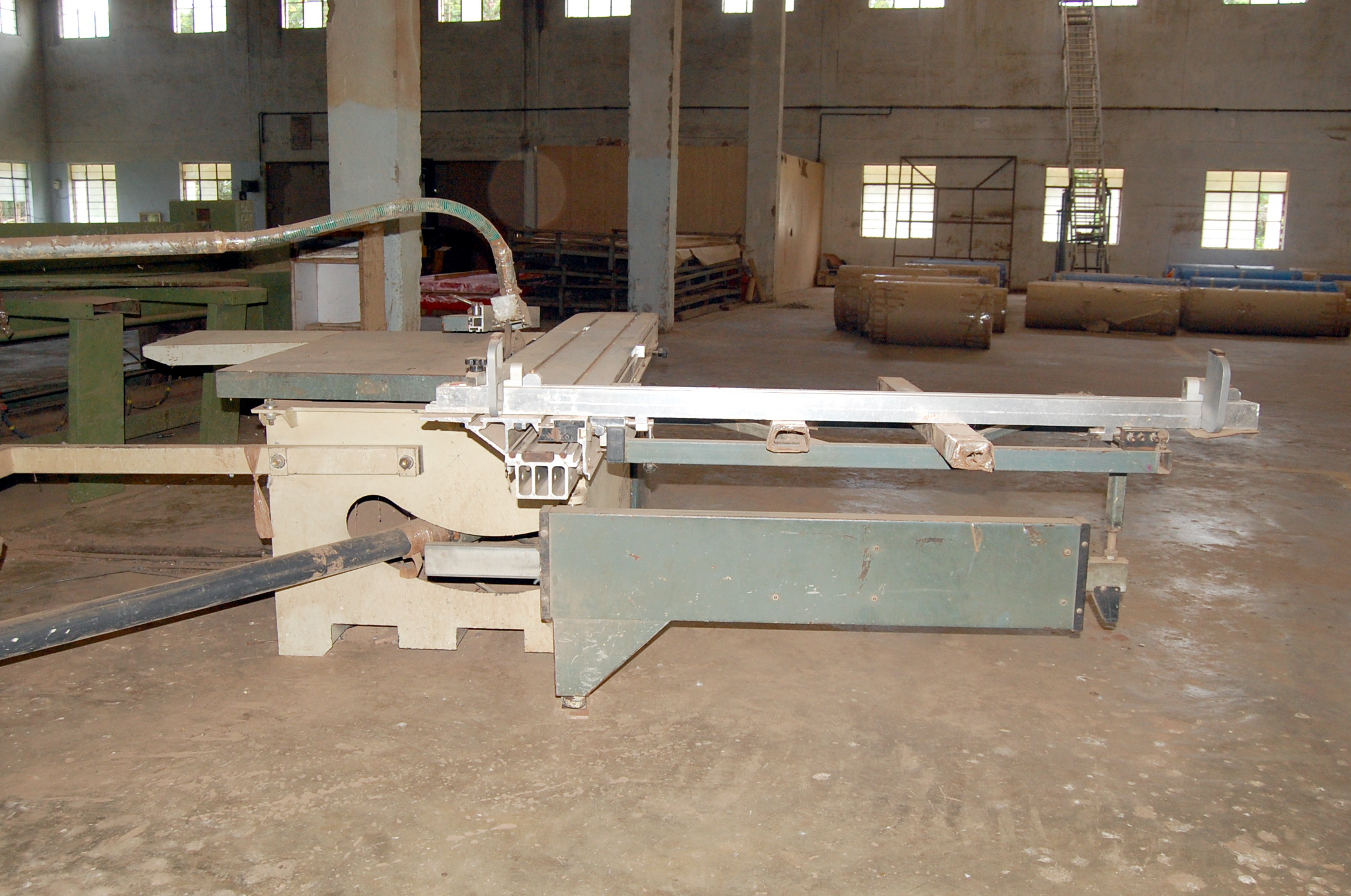

B25 Trim & cut to size Saw
Duty
: To trim raw board & cut to reqd size
Capacity
: 150 cbm/day

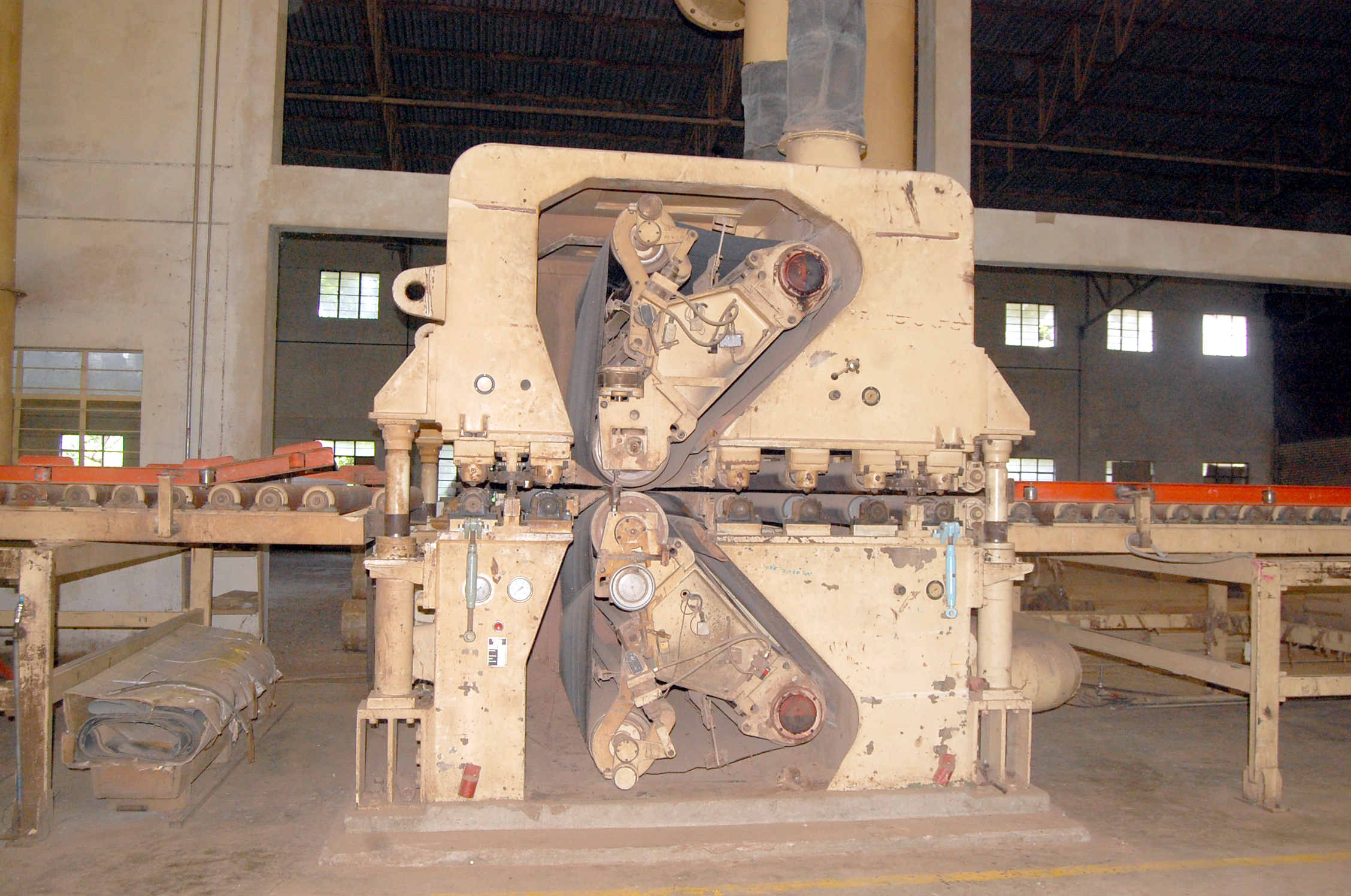

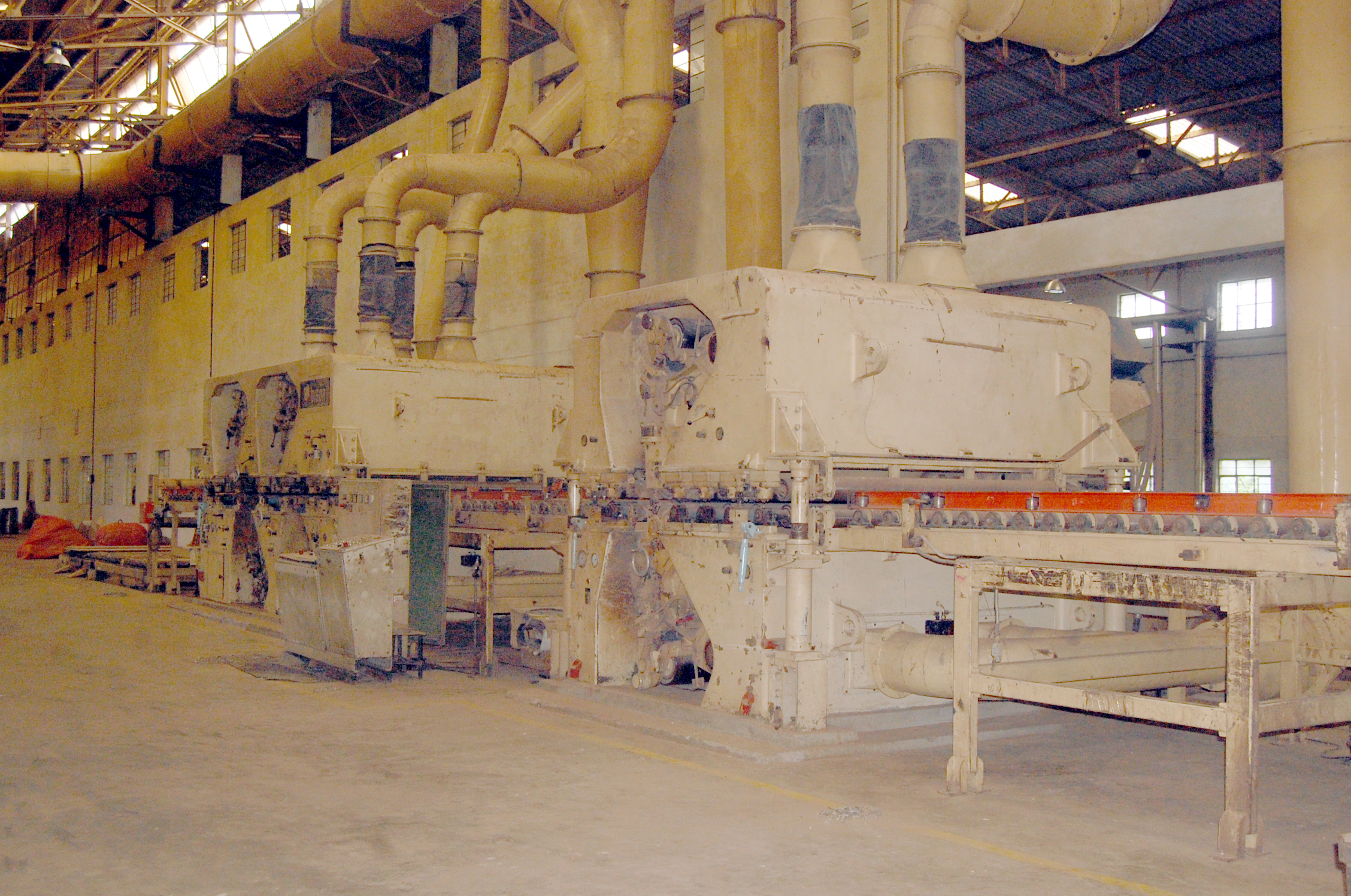

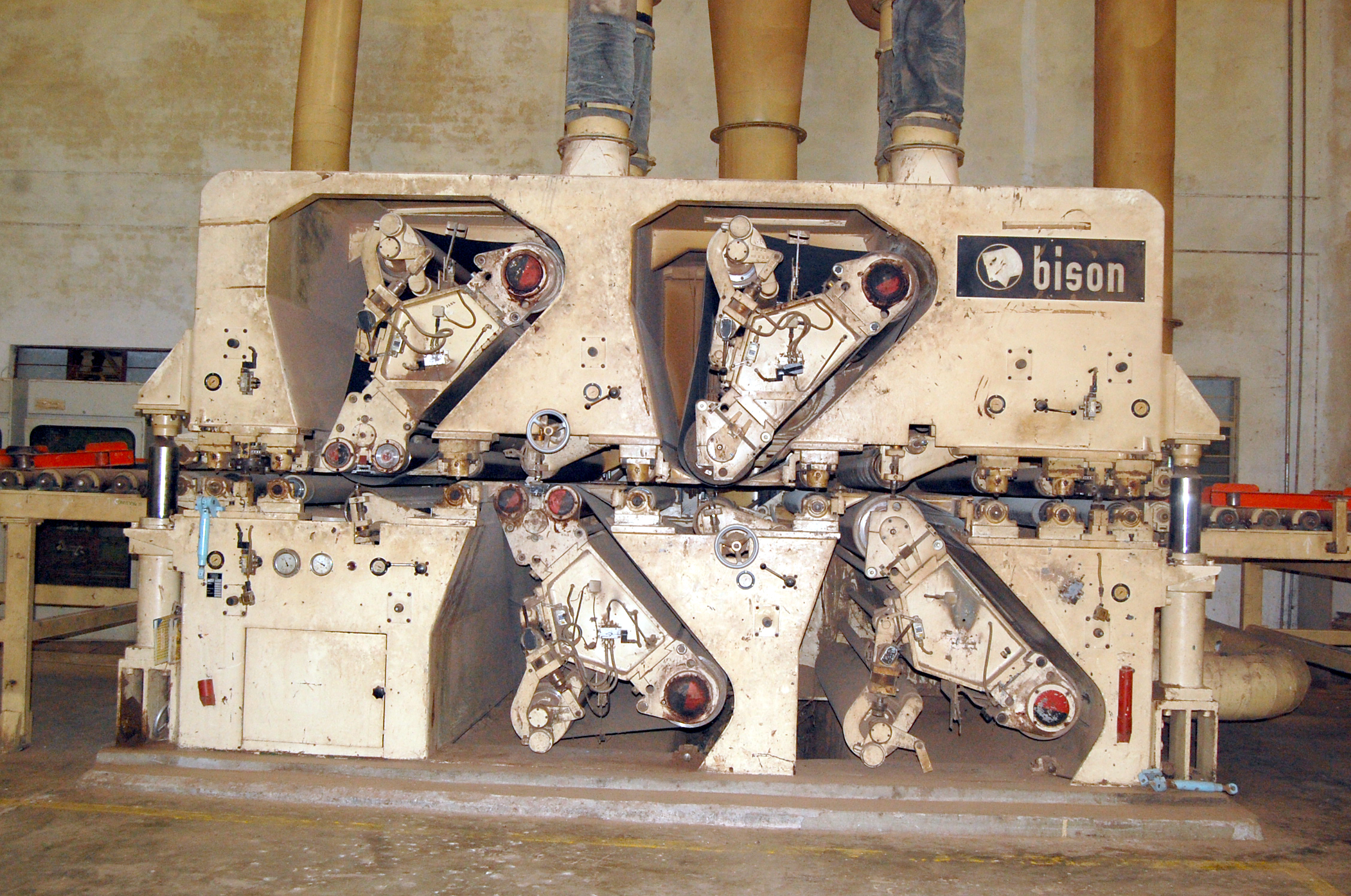

B.26 Sanding machine
Make
: Bison,Germany
No of sanding heads
: 6nos
Capacity
: 250 cbm per day
LAMINATION LINE ( SHADNAGAR)
B.31 IMPREGNATOR
Type
: Double pass with coating station
Make
: VITS, Germany
Working width
: 1800mm
No of zones
: 1+3 after coater
Capacity
: 30 mtr per min (process)

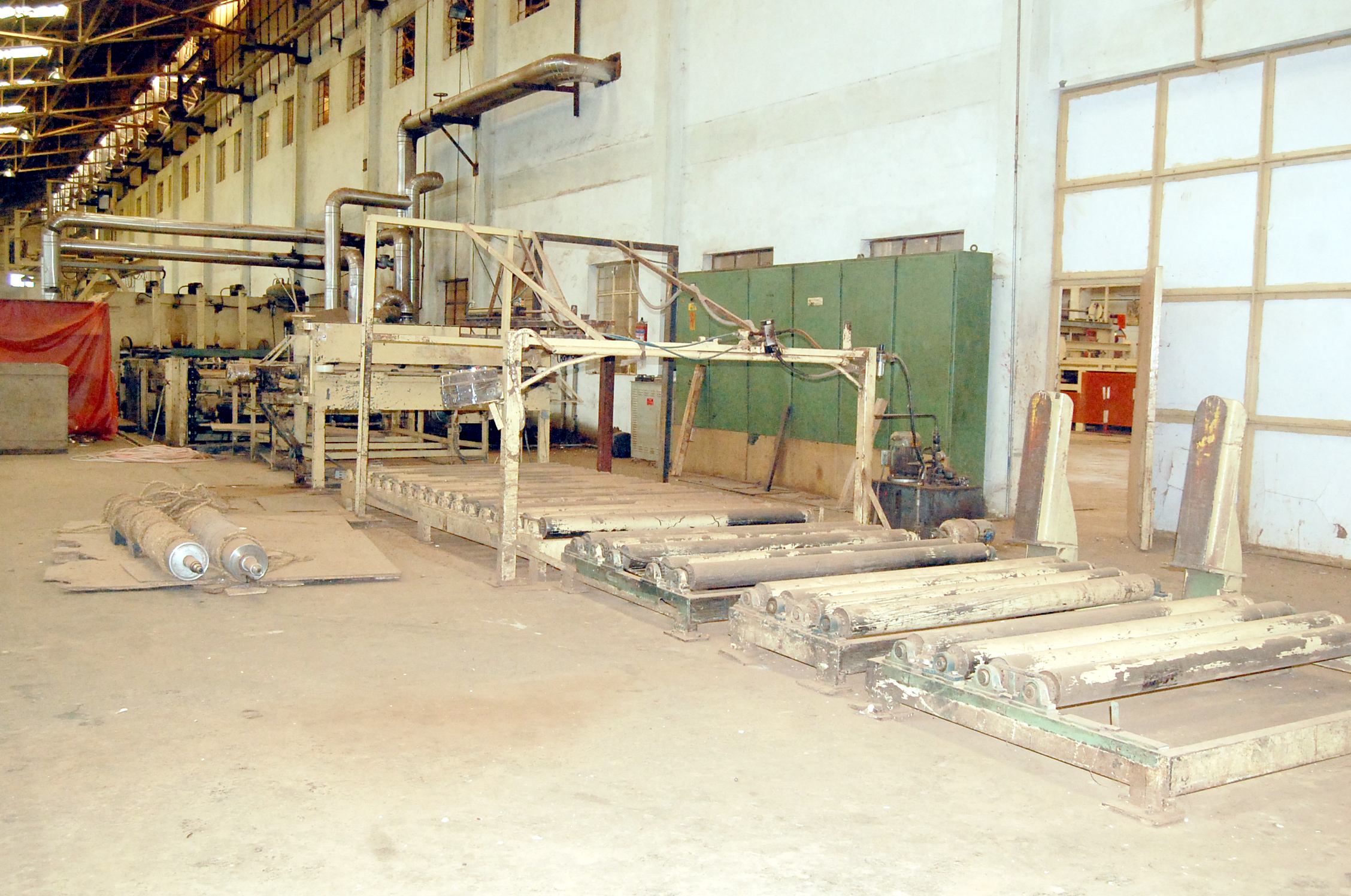

B.32 SHORT CYCLE PRESS no. I
Make
: Siempelkamp,Germany
Size of board to be laminated
: 12 X 6 ft
Type
: 1Up stroking,single opening
Loader
: Tray belt type
Unloader & Inspection
: Vacuum cup type
Conveyors
: Feeding and unfeeding end
B.33 SHORT CYCLE PRESS no.II
Make
: Kangwei,China
Size
: 8X6 or 8X 4 ft
Type
: Down stroking
Loader
: Tray belt
Unloader
: Vacuum cup type
B.41 THERMIC BOILERS
Qty
: 2 NOS
Capacity
: 15000 kcal/hr each
B.42 AIR COMPRESSOR
Qty
: 1 no.
Make
: Atlas Copco
Capacity
: 9 cbm/min
B.43 AIR CONDITIONING COMPRESSOR
Qty
: 1 no.
Make
: Atlas Copco
Capacity
: 9 cbm/min
